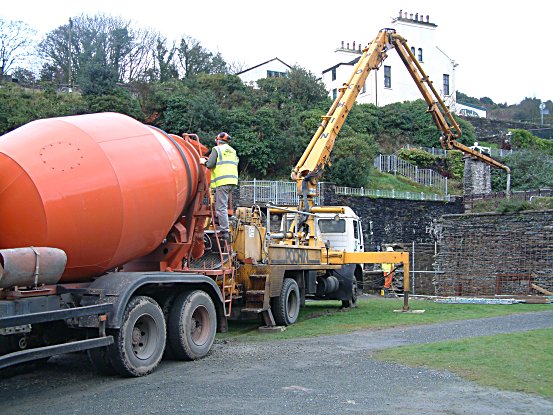

Above: The pump and mix arrive for the third delivery.

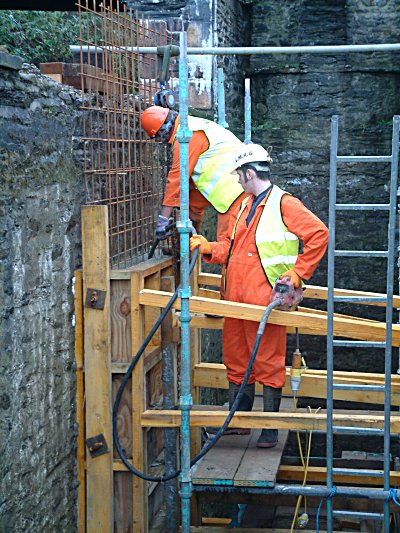

Above: Duncan and Paul using the vibrating poker to
settle the concrete and ensure a good key to the wall.

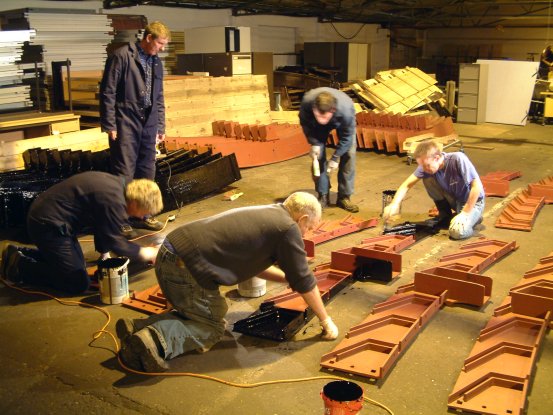

Above: A second team meanwhile commence painting
the restored rim segments at the temporary workshop.

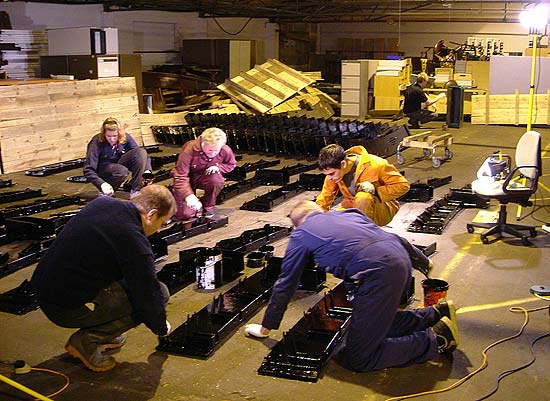

Above: All the metal work has been
given a two thick coats of bitumen paint.

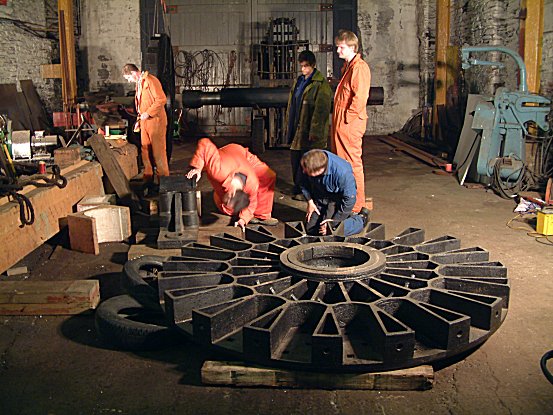

Above: The group join forces with engineers at Booth W. Kelly
Ramsey Shipyard to start the axle and hub assembly.

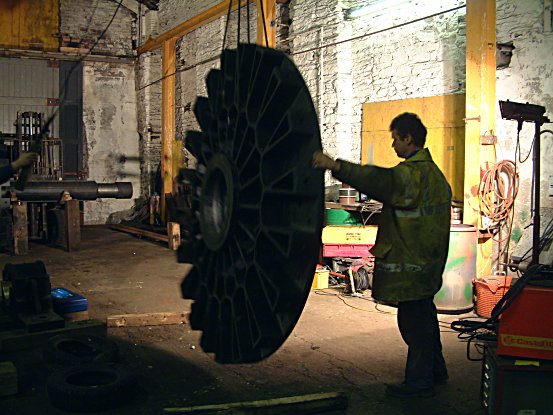

Above: Kelvin Keightley guides the two ton hub
as it is lifted by the traversing crane at Ramsey Shipyard.
