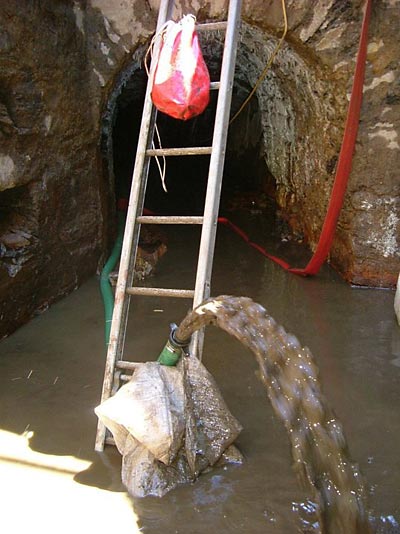

Above: The Mud and water is pumped from the tunnel
into the pit where it is collected in bags for removal.

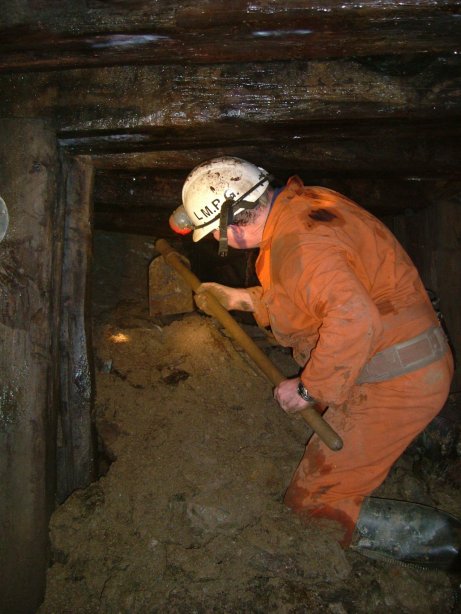

Above: Mike Dobson examining the blockage 41 meters down
the tunnel. The old access shaft was filled in back in the 1950's

 Above: It was necessary to remove the blockage so that the
tail water from the wheel pit could drain into the river.

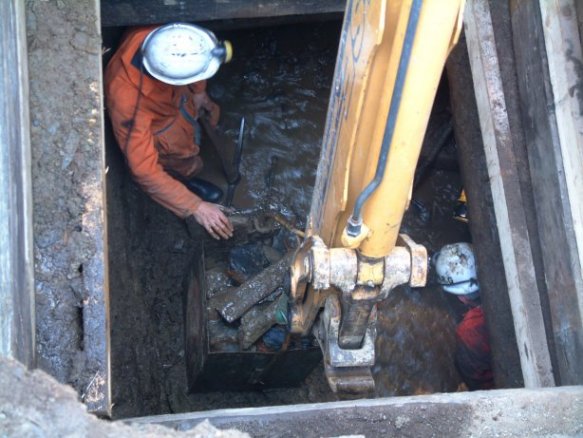

The shaft was excavated from surface using a kibble or steel bucket.

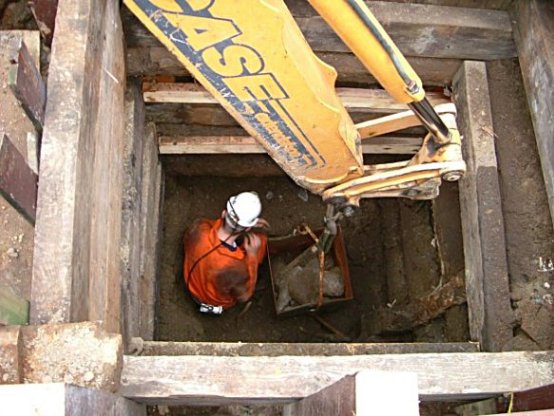

Above: With the shaft cleared to it's depth of five meters.
The water could again freely flow the remaining one hundred meters

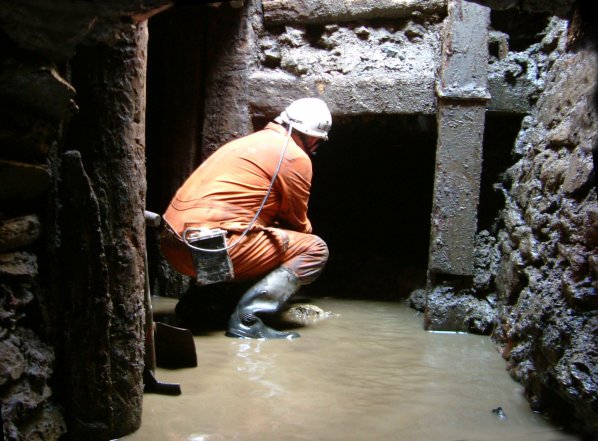

Above: The shaft bottom is located on a three way junction.
The tunnel ahead is the tail of from the smaller thirty five
foot wheel that also served the floors. The main tunnel is on the left.

Above: Master Carpenters Dave Bignal and Stan Skinner at Ramsey Shipyard
working on the huge twenty two foot long spokes for the Snaefell water wheel.
