PROGRESS - PAGE 13 of 64
manxmines.com | Trevithick Society



Pages 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64

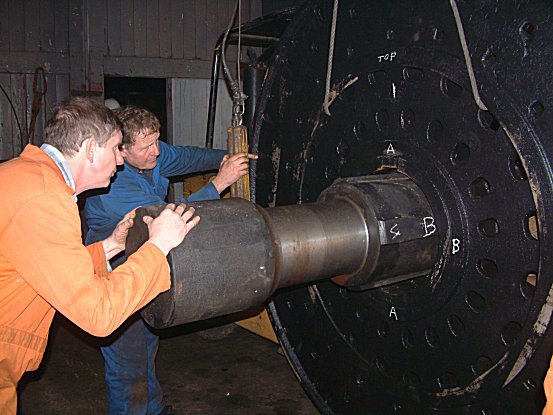

Above: Tony Hadley operates the lifting gantry whilst
Pete Geddes ensures correct alignment of the two components.

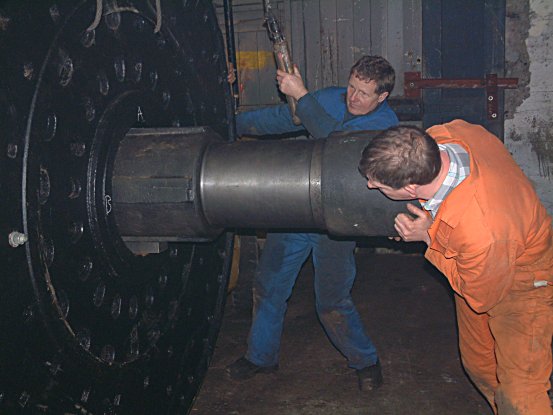

Above: The hub is slowly lowered onto the first of the new key steel wedges.

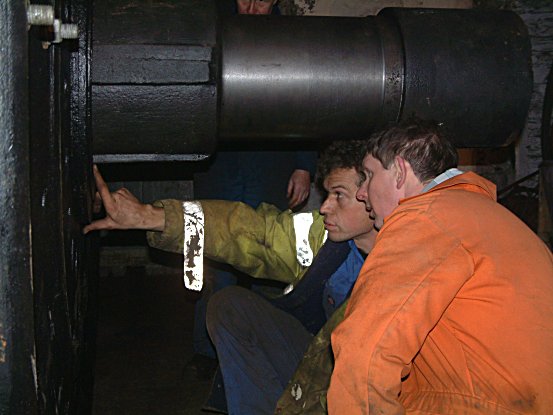

Above: Kelvin and Pete checking the key
alignment prior to the wedges being hammered home.

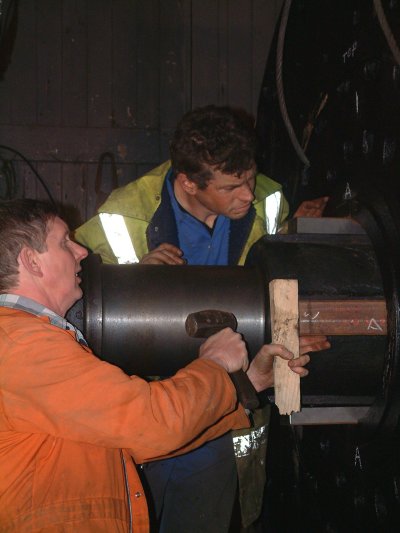

Above: The second wedge is lightly tapped
into place whilst Kelvin keeps an eye on the opposite side.

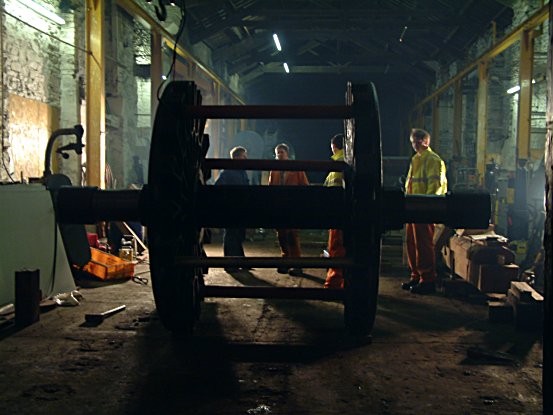

Above: With both hubs in place the assembly was secured
with four bracing bars which will ensure the hubs remain
parallel during transport and wheel assembly.

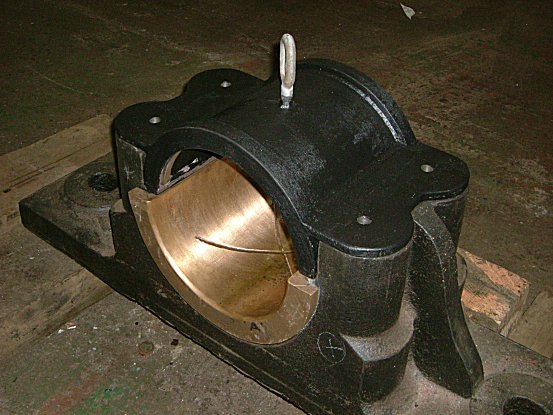

Above: One of the now fully restored bearing blocks
and new bearing cap. The cap considered a masterpiece
and a perfect fit has been fabricated out of steel
and yet made to look a hundred years old.
