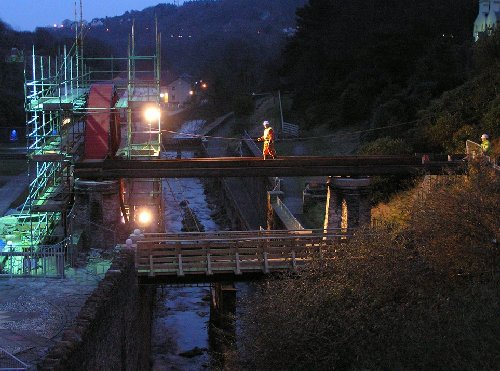

Above: Work continues into the evening.

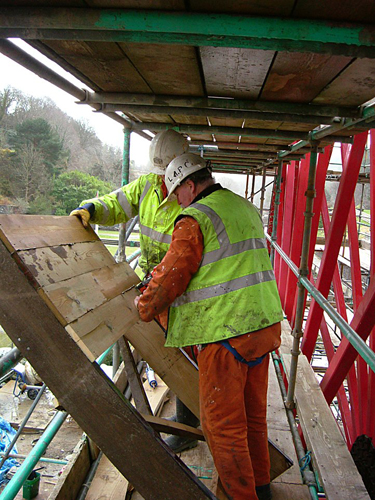

Above: The splash shroud in constructed on the scaffolding
This component will ensure that water entering the buckets
from the aqueduct wont splash out and onto the column.

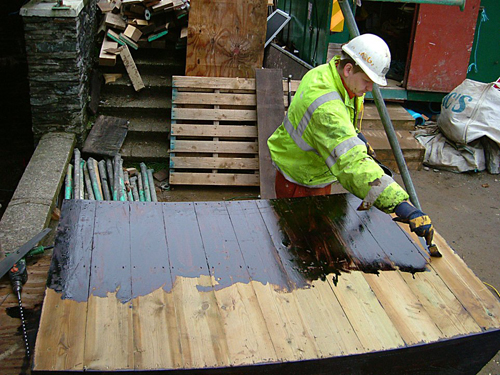

Above: The shroud is given a protective coating

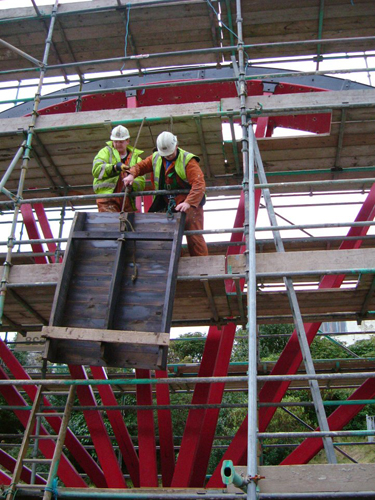

Above: The crew haul the splash shroud
up to the back of the wheel.

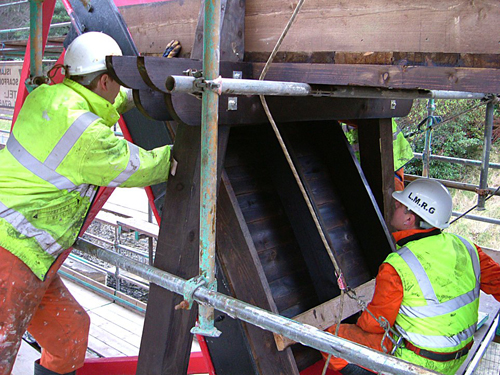

Above: The component is fitted in place and loosely
tacked to hold it whilst it is aligned into position .

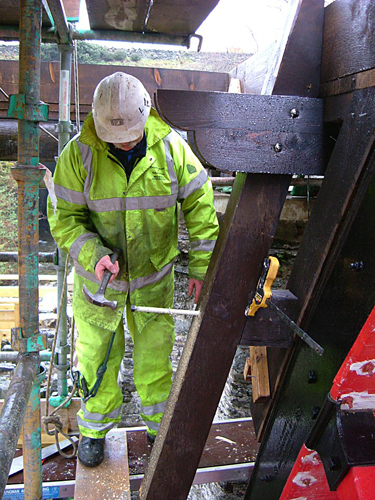

Above: A heavily greased bolt is located on each
side to secure the structure to the shearlegs.
