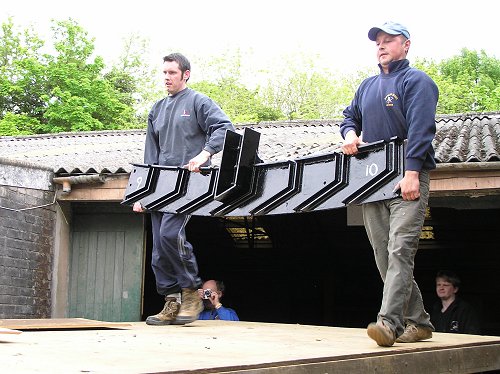

Above: Paul Geddes and Steve Dillon man handle the heavy rim segments onto the wagon.

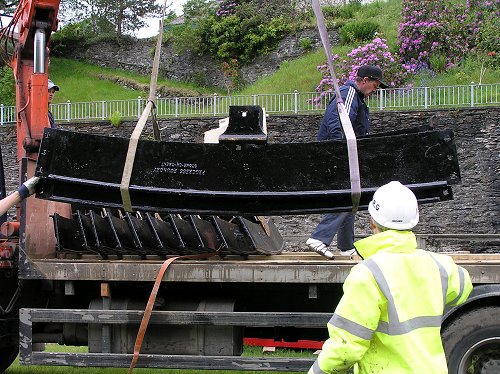

Above: The remaining sections are unloaded at laxey.

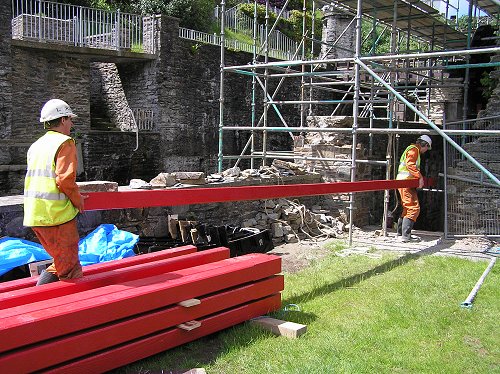

Above: The first of the spokes are brought to the wheel pit.

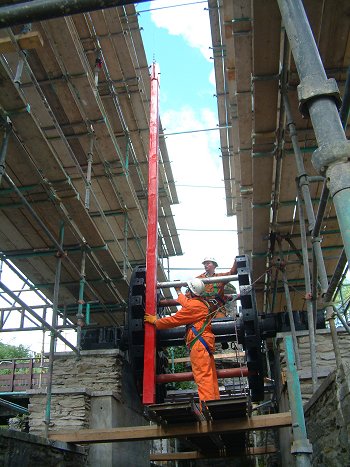

Above: The spoke is lifted to almost the full height of the scaffold and then lowered
down to the two crews at the hub and the pit bottom.

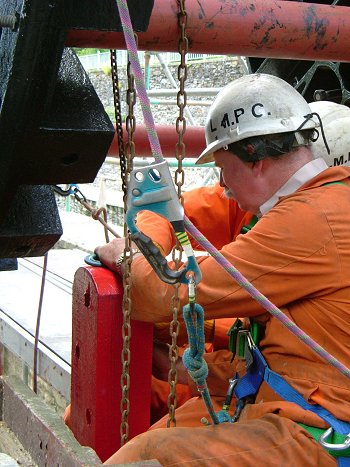

Above: The crew at the hub transfer the spoke onto a small chain hoist to lift the spoke into the socket.

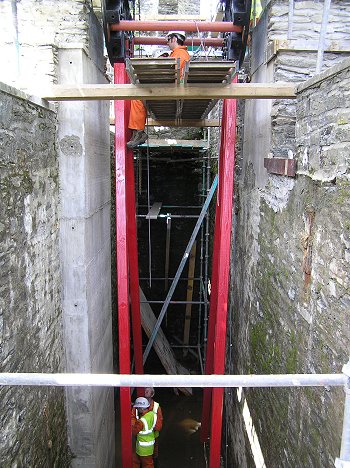

Above: Both crews work together to get the spoke in place.
