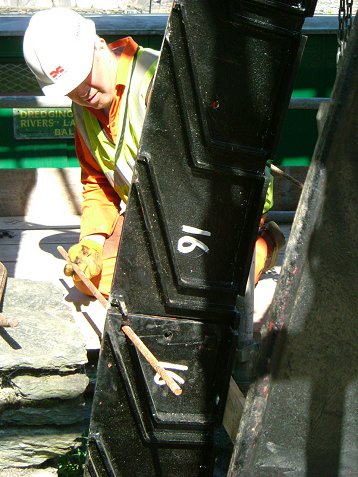

Above: Roy ensures the shrouds line up correctly before bolting up.

Above: The next to last shroud on the river side of the
wheel is hoisted to position above the spoke.

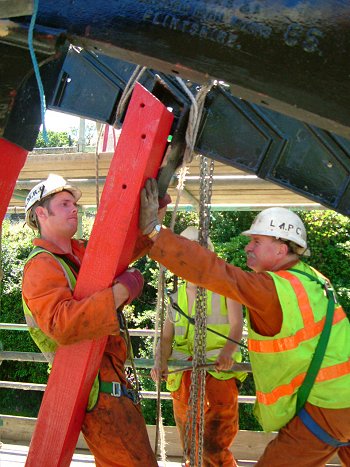

Above: The shroud is located onto the spoke.

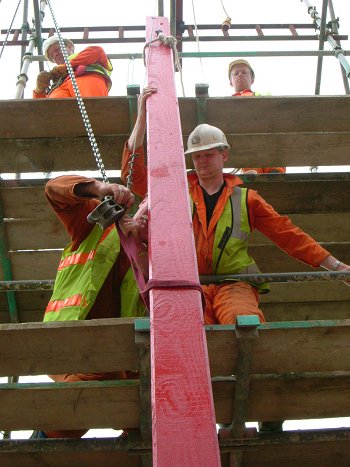

Above: The last spoke is raised to the top of the scaffold.

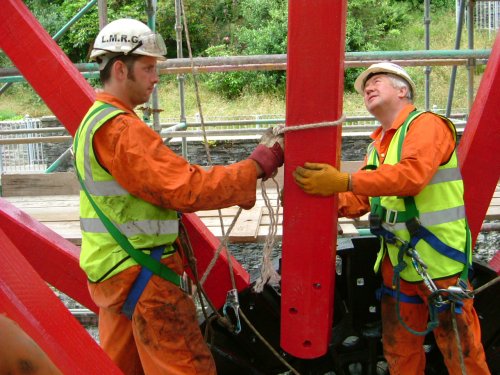

Above: The spoke is lowered into the socket on the hub.

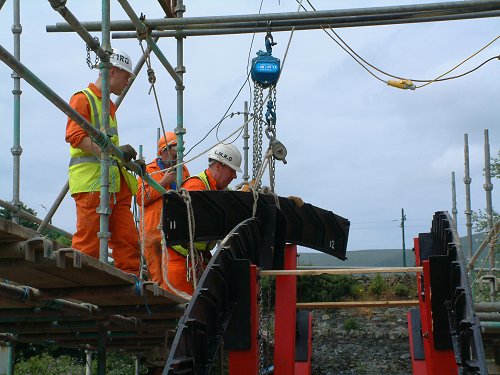

Above: The final shroud is hoisted into position
