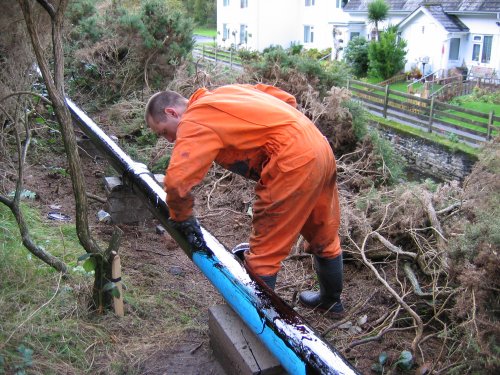

Above: Alan Thomson paints the pipe with a black bitumen paint.

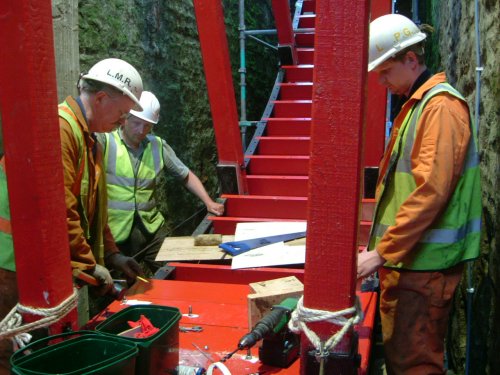

Above: Mike Dobson, Hans de Lange and Mark Stringer start work
on fitting the backboards.

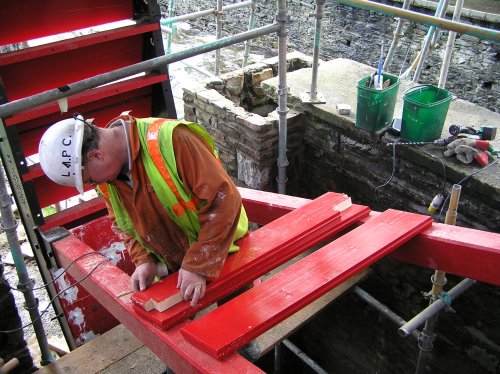

Above: Every tenth board has to be cut to fit around the spoke socket.

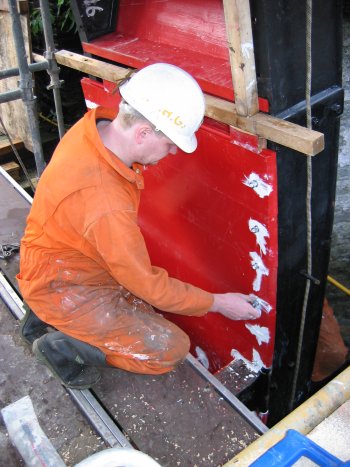

Above: Mark secures the bolts holding the boards to the shroud sections.

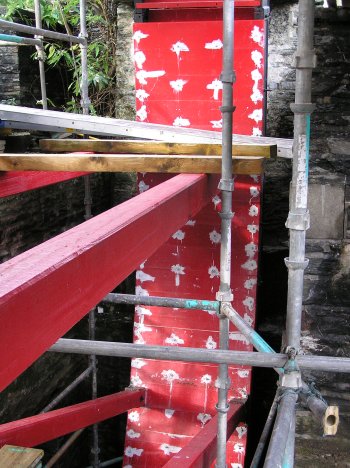

Above: There will be a total of 220 backboards and 800 bolts
to complete the bucket structure.

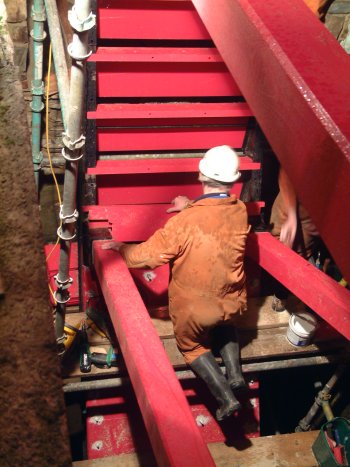

Above: The team work under floodlights during the winter nights
