Above: Mining Engineer Adrian Jackson surveys the bottom of the wheel pit.

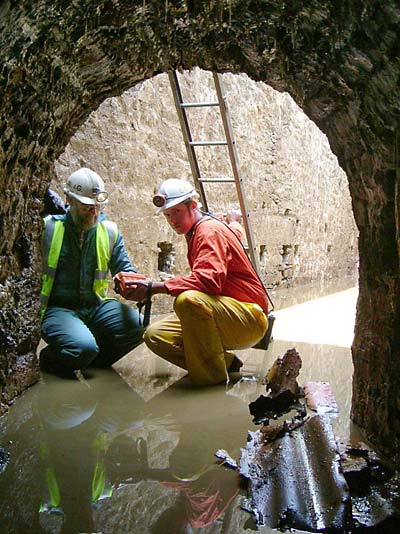

Above: Engineer Duncan Robertson and Paul Geddes
 checking the air prior to entering the drain tunnel.

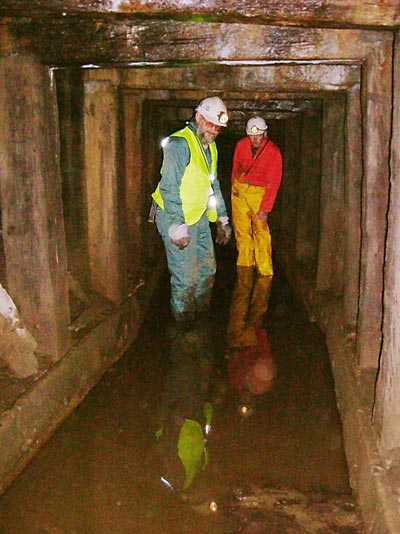

Above: The tunnel opened up to reveal a fine timber lined passage.

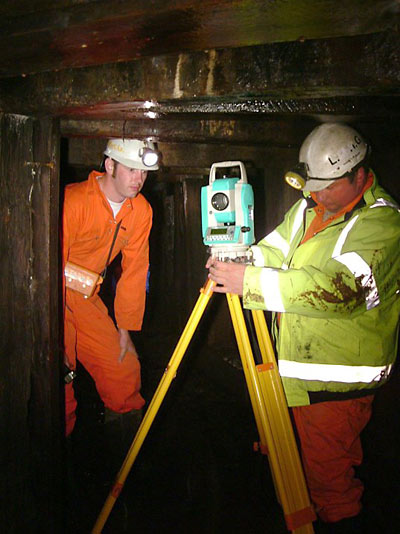

Above: Adrian sets up the Theodolite for the tunnel
 survey whilst Paul monitors the air for oxygen deficiency

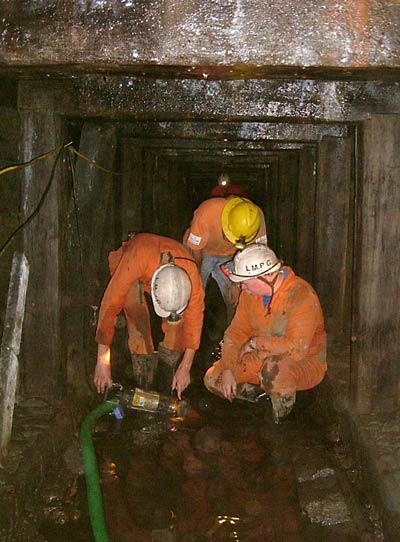

Above: A submersible pump is set up part way
down the tunnel to remove the thick mud.

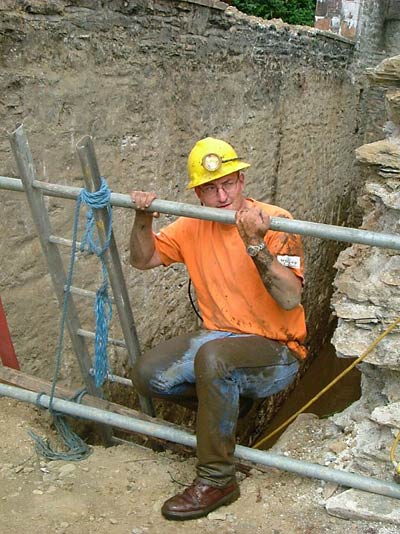

Above: Mining Engineer Alex Parks emerges
from the pit with his share of the mud.
